Modules: Assay Types

Module-based assays allow a developer to create a new assay type with a custom schema and custom views without becoming a Java developer. A module-based assay type consists of an assay config file, a set of domain descriptions, and view html files. The assay is added to a module by placing it in an assay directory at the top-level of the module. When the module is enabled in a folder, assay designs can be created based on the type defined in the module. For information on the applicable API, see: LABKEY.Experiment#saveBatch.

Topics

Tutorial: Define an Assay Type in a Module - Get started writing module-based assays.
Assay Custom Domains - Create a custom result domain.
Assay Custom Views - Add custom HTML details views.
Example Assay JavaScript Objects - JavaScript examples for assay modules.
Assay Query Metadata - Provide additional properties to a query.
Transformation Scripts - Transform data before updates and inserts using scripts.
Customize Batch Save Behavior - Customize batch save behavior using Java.
Suggestions for Extensible Assays - An informative discussion from the LabKey Support Boards

Examples: Module-Based Assays

There are a handful of module-based assays in the LabKey SVN tree. You can find the modules in <LABKEY_ROOT>/server/customModules. Examples include:

<LABKEY_ROOT>/server/customModules/exampleassay/resources/assay
<LABKEY_ROOT>/server/customModules/iaviElisa/elisa/assay/elisa
<LABKEY_ROOT>/server/customModules/idri/resources/assay/particleSize

File Structure

The assay consists of an assay config file, a set of domain descriptions, and view html files. The assay is added to a module by placing it in an assay directory at the top-level of the module. The assay has the following file structure:

<module-name>/
    assay/
          ASSAY_NAME/
              config.xml example
              domains/ - example
                  batch.xml
                  run.xml
                  result.xml
              views/  - example
                  begin.html
                  upload.html
                  batches.html
                  batch.html
                  runs.html
                  run.html
                  results.html
                  result.html
              queries/ - example
                  Batches.query.xml
                  Run.query.xml
                  Data.query.xml
                  CUSTOM_ASSAY_QUERY.query.xml
                  CUSTOM_ASSAY_QUERY.sql (A query that shows up in the schema for all assay designs of this provider type)
                  CUSTOM_ASSAY_QUERY/
                      CUSTOM_VIEW.qview.xml
              scripts/
                  script1.R
                  script2.pl

The only required part of the assay is the <assay-name> directory. The config.xml, domain files, and view files are all optional.

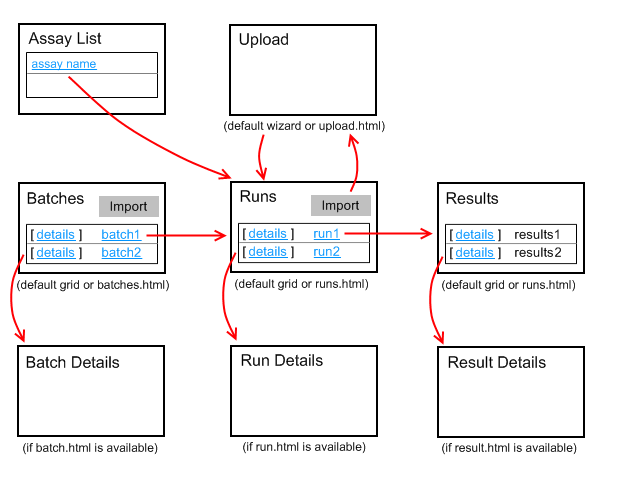

This diagram shows the relationship between the pages. The details link will only appear if the corresponding details html view is available.

How to Specify an Assay "Begin" Page

Module-based assays can be designed to jump to a "begin" page instead of a "runs" page. If an assay has a begin.html in the assay/<name>/views/ directory, users are directed to this page instead of the runs page when they click on the name of the assay in the assay list.
